Security and surveillance

VAR300 is a stationary high-performance multi-integrated active electro-optical detection device that adopts multi-spectrum and multi-technology fusion design, incorporates thermal imaging technology and high-resolution camera based on VAR200. It also makes full use of deep neural network algorithms to automatically extract and classify features from image data to improve the accuracy and effectiveness of detection and identification of 'low, slow and small' drones. It is suitable for airports, prisons, critical activities and other scenarios.

Features: Automatic Tracking, Multi-spectral Detection, Intelligent Identification, Target Localization.

Specs:

• Detection Mode: Active scanning, searching, identifying, and tracking (without the guidance of other devices)
• Detection Distance: Daylight: Detection ≥1km, Tracking ≥1.5km; Night: Detection ≥0.5km, Tracking ≥0.8km (Target: DJI Mavic 3)
• Resolution: 1920 x 1080 (Optical)
• Infrared Thermal Imaging: Detection Type VOx uncooled focal plane arrays; Resolution 640 x 512 dpi
• Working Hours: 24-hour continuous operation
• IP Rating: IP66

Based on the design concepts of AI learning and electro-optical integration, the system boasts outstanding performance, comprehensive functionality, and unique features. It supports active detection, intelligent identification, target positioning, evidence collection, and tracking. This enables continuous, 7/24 monitoring and identification of drones in low-altitude airspace. Moreover, the system integrates and interoperates with radio systems to form a comprehensive, multilayered low-altitude security system. Highly integrated, scalable, and adaptable, the system is ideal for long-term, fixed deployment in critical areas such as airports, petrochemical facilities, and other key infrastructure.

Features: Run Independently, User-friendly, Active Detection, Network Coordination.

Specs:

• Detection Mode: Active scanning, searching, identifying, and tracking (without the guidance of other devices)
• Detection Function: It detects and shows the captured images of the drone, target similarity, direction, and other information
• Detection Distance: 0~1km
• Focal Length: 40x optical zoom
• Total Pixel: ≥200W
• Resolution: 3840 x 2160 dpi
• Detection Speed: 30°/second

The Vehicle-Mounted Drone Detection and Jamming System has the characteristics of fast mobility, flexible deployment and real-time response, and is suitable for all kinds of mobile and accompanying low-altitude security scenarios. It can be widely used in public safety, correctional facilities, airports, stadiums, water conservancy and hydropower, and other industries.

Features: Lightweight and Flexible, Integrated System, Autonomous Function, Black and White List.

Specs:

• Detection Bands: 30MHz~6GHz
• Detection Distance: 0~3km
• Direction Finding Accuracy: (RMS) 3° (hovering), 10° (moving)
• Jamming Bands: 400MHz, 900MHz, 1.2GHz, 1.4GHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz
• Jamming Distance: 0~2km
• Spoofing Signal: GPS-L1, GLONASS-L1, BDS-B1
• Dynamic Detection: 0~80km/h (Vehicle speed)
• Dimensions: 985mm × 795mm × 434mm (±2mm)
• Weight: 60kg ± 2kg

HDJS 3.0 combines powerful, long-range counter-drone capabilities with a lightweight, user-friendly design. The equipment forms a multi-layered defense system, providing detection, identification, and early warning, as well as direction-finding, positioning, jamming, and navigation spoofing. It enables unauthorized drones to be neutralized without disrupting the surrounding environment. It delivers an efficient, comprehensive, and portable low-altitude defense solution that can be used extensively in aviation, energy facilities, large-scale events, correctional facilities, and others.

Features: Precise Identification, High-performance Touch Screen, High Integration, Map Mode.

Specs:

• Detection Bands: 400MHz~6GHz
• Detection Distance: 0~3km
• Direction Finding Accuracy: ≤10° (RMS)
• Jamming Bands: 433MHz, 900MHz, 1.2GHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz
• Jamming Distance: 0~2km
• Spoofing Signal: GPS-L1, GLONASS-L1, BDS-B1
• Power Supply: Two built-in lithium batteries that can be replaced / AC 110~240V, 50/60Hz, 3.3A
• Continuous Runtime: ≥3h (Support battery replacement without shutting down), ≤1h (Single or Multiple Band Jamming), ≤20min (Full-band Jamming)
• Weight: ≤7kg (Battery included)

The system adopts an integrated design concept, integrating detection, early warning, target direction finding, jamming, display, and control networking functions into one. It can be used independently in a single set or in a network of multiple sets of equipment, visually displaying the equipment and target status on the control terminal. With intelligent and integrated defense functions, it is suitable for individual duty scenarios in public safety, correctional facilities, airports, stadium, water conservancy and hydropower, and other industries.

Features: Comprehensive Features, Self-contained System, Flexible and Convenient, Ergonomically Designed.

Specs:

• Detection Bands: 2.4GHz, 5.8GHz
• Detection Distance: 0~3km
• Jamming Bands: 900MHz, 1.5GHz, 2.4GHz, 5.8GHz
• Jamming Distance: 0~1km
• Spoofing Signal: GPS-L1, GLONASS-L1, BDS-B1
• Power Supply: Lithium battery that can be replaced/Support charging while using
• Continuous Runtime: ≥8h (Detection), ≥45min (Jamming)
• Weight: ≤5.5kg (Battery included)

DFJS series integrates passive detection, precise identification, accurate positioning, precise jamming, wideband jamming, and navigation spoofing functions. It incorporates Cognitive Radio Protocol Cracking (CRPC 2.0) technology and RID parsing technology to obtain real-time drone information, such as the latitude and longitude positions of DJI, AUTEL, and mainstream DIY drones.

Features: Full-band Detection, Integrated Defense, Black and White List, Autonomous Function.

Specs:

• Detection Bands: 30MHz~6GHz
• Detection Distance: 0~8km
• Direction Finding Accuracy: (RMS) 3° (hovering), 10° (moving)
• Detection Quantity: >40 Drones (Simultaneous)
• Jamming Bands: 900MHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz
• Jamming Distance: 0~3km
• Spoofing Signal: GPS-L1, GLONASS-L1, BDS-B1
• Spoofing Distance: 0~1km
• Operating Temperature: -40°C~70°C
• IP Rating: IP66

The Stationary Detection and Jamming System has multiple task operating functions and leading performance. The equipment adopts professional waterproof and dustproof design, stable and reliable continuous operation in the harsh outdoor environment, and it can be widely set up and deployed in public safety, correctional facilities, airports, stadiums, water conservancy and hydropower, and other industries.

Features: Precise Identification, Defense and Jamming, Black and White List, Autonomous Function.

Specs:

• Detection Bands: 30MHz~6GHz
• Detection Distance: 0~8km
• Direction Finding Accuracy: (RMS) 3° (hovering), 10° (moving)
• Detection Quantity: >40 Drones (Simultaneous)
• Jamming Bands: 900MHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz
• Jamming Distance: 0~3km
• Extended Customization: Support optional navigation spoofing function
• Operating Temperature: -40°C~70°C
• IP Rating: IP66

HDS51 is a mobile, integrated drone detection and spoofing defense system. It is equipped with core technologies for radio protocol cracking and multi-mode navigation spoofing, enabling precise identification and accurate positioning, as well as omnidirectional defense against drones within protected zones. This device features an integrated enclosure design with a built-in touchscreen terminal, supporting standalone operation and rapid deployment in complex environments.

Features: Precise Identification, Intelligent Spoofing, Multi-mode Spoofing, Strong Usability.

Specs:

• Detection Bands: 100MHz~6GHz
• Detection Distance: 0~5km
• Protocol Cracking: CRPC, Drone ID, Remote ID
• Spoofing Signal (Customizable): GPS-L1, GLONASS-L1, BDS-B1
• Spoofing Distance (Customizable): 0~1km
• Power Supply: Built-in lithium battery or AC110~240V
• Continuous Runtime: 6h~7h
• Dimensions: 470mm x 357mm x 176mm (Closed State)
• Weight: ≤14kg
• IP Rating: IP66 (Closed State)

The stationary detection and spoofing integrated equipment has complete functions and excellent performance. Equipped with professional-level waterproof and dustproof design, it can operate reliably and continuously in outdoor harsh environment and can be widely applied to the area installation and deployment of public safety, correctional facility, airport, stadium, water conservancy and hydropower, and other industries.

Features: Precise Identification, Autonomous Function, Spoofing and Defense, Intelligent Spoofing.

Specs:

• Detection Bands: 30MHz~6GHz
• Detection Distance: 0~8km
• Spoofing Distance (Customizable): 0~1km
• Spoofing Signal: GPS-L1, BDS-B1, GLONASS-L1 (Galileo-E1/GPS-L2 are available as options)
• Transmitting Power: Customizable, <10mW (Default)
• Direction Finding Accuracy: 3° (RMS)
• Operating Temperature: -40°C~70°C
• IP Rating: IP66

This portable product is used for drone detection and identification and has the advantages of easy deployment, mobile compatibility, early warning, and positioning with trajectory tracking. When a drone enters defense areas, this device can raise the alarm, determine the real-time location of the target and the pilot through CRPC message level protocol cracking, and record the trajectory of the drones.

Features: Trajectory Tracking, Precise Identification, Cost Effective, User-friendly.

Specs:

• Main Bands: 900MHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz
• Detection Distance: 0~5km
• Detection Quantity: >20 Drones (Simultaneous)
• Number of Drone Trajectories: >10 drones (Simultaneous)
• Power Supply: Built-in lithium battery or AC 110~240V
• Continuous Runtime: >12h (at full load condition)
• Dimensions: 470mm x 357mm x 176mm (±2mm)
• Weight: <13kg
• Operating Temperature: -40°C~65°C
• IP Rating: IP66 (Closed State)

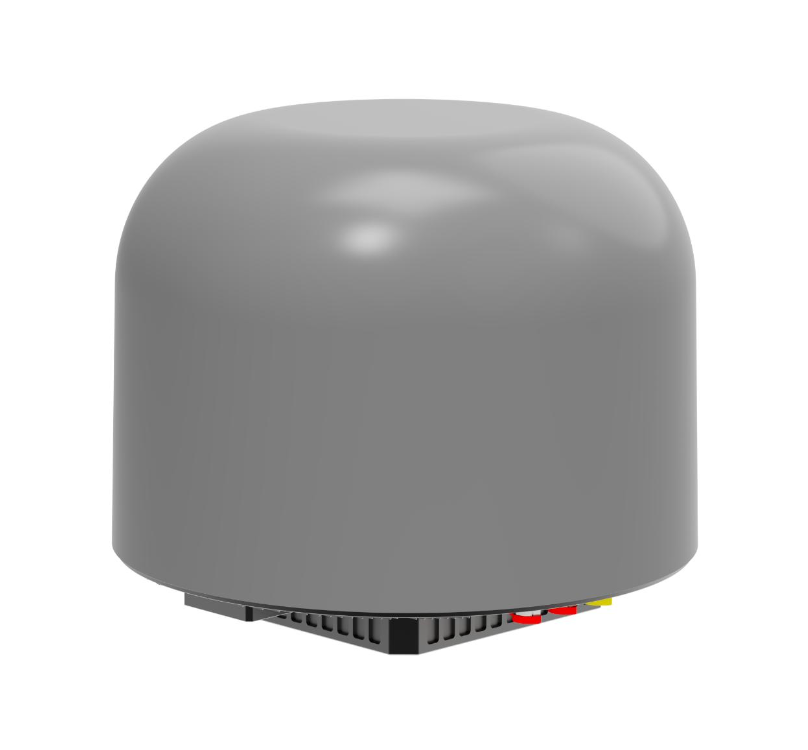

DF5 Max is a stationary high-precision detection and identification equipment, using a multi-functional integrated design, which supports multi-band direction finding. The equipment covers FPV drones and DIY drones. It can also achieve single-station resolving positioning, multi-site network fusion positioning of the whole model coverage, the entire dimensional positioning, and tracking of the target drones. This stationary equipment widely applies to airports, high-speed railway stations, electric power systems, petroleum, and petrochemicals.

Features: Precise Identification, Non-Cooperative Target Detection and Identification, Full-Band Direction Finding, Highly Integrated.

Specs:

• Detection Bands: 400MHz~6GHz
• Detection Distance: 0~5km
• Direction-finding Bands: 400MHz~6GHz
• Direction-finding Accuracy: ≤10° (RMS)
• Operating Temperature: -40°C~65°C
• IP Rating: IP66

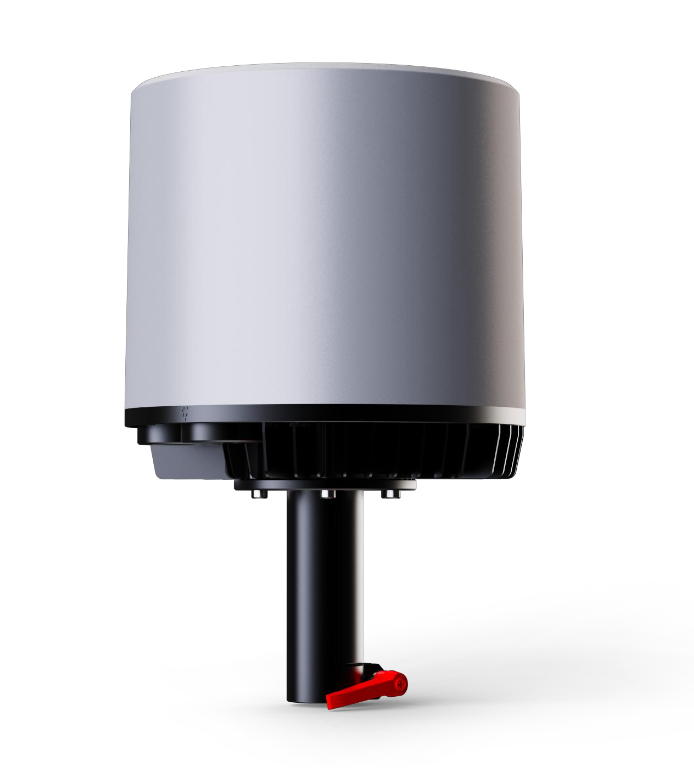

The TDOA detection and positioning system features passive detection, compact size, light weight, The equipment can be fixedly installed or flexibly deployed and is applicable to the deployment and use in areas such as public safety, correctional facility, airport, stadium, water conservancy and hydropower, and other industries.

Features: Passive Detection, Full Band Coverage, Precise Identification, Networking Positioning.

Specs:

• Detection Bands: 30MHz~6GHz
• Detection Distance: 0~3km
• Detection Quantity: >30 Drones (Simultaneous)
• Position Accuracy: <10m (RMS)
• Dimensions: φ224mm x 287.5mm (±2mm)
• Weight: <3kg
• Operating Temperature: -40°C~70°C
• IP Rating: IP66

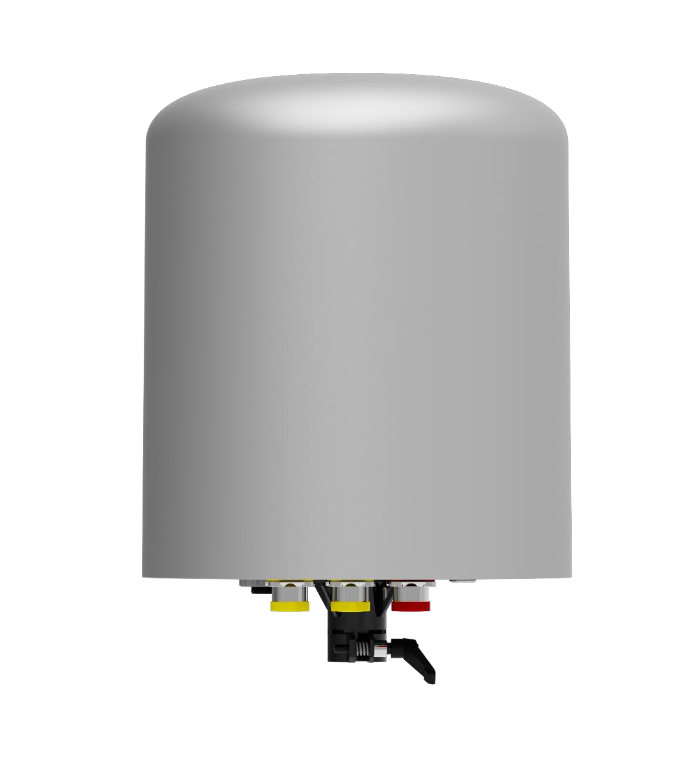

R5 is a high-performance fixed UAV Remote ID receiver designed for use in a variety of scenarios, providing reliable and extensive UAV monitoring coverage. With its professional outdoor protective shell and integrated antenna design, R5 can reliably operate in harsh environments such as wind, sun, rain, and snow. This product is widely used in the Internet of Things for agriculture, environmental monitoring, and smart cities.

Features: Protocol Compatibility, High Integration, Target Identification Capability, Network Coordination.

Specs:

• Working Principle: Remote ID message parsing
• Detection Bands: Wi-Fi 2.4GHz/5.8GHz
• Detection Distance: Urban 0.2km~1km, Urban Suburban 0.5km~2km, Suburban 2km~8km
• Processing Capacity: >100 messages / second
• Dimensions: φ307mm x 420mm (±2mm)
• Operating Temperature: -40°C~65°C
• IP Rating: IP66

Based on CRPC 2.0 technology, it adopts a deeper data chain decoding solution to analyze and extract real-time flight attribute information from data in specific formats, and accurately identifies the drone's graphic and video stream, SN number, geo-location, trajectory, altitude, speed and pilot (remote control) position, etc., to detect, identify and locate the unauthorized drones more quickly and accurately. The device has an integrated design, small in size, light in weight, and easy to carry, which is suitable for all kinds of low-altitude protection.

Features: Compact and Portable, Precise Identification, Trajectory Tracking, Analog Video Transmission.

Specs:

• Detection Bands: 800MHz&900MHz, 1.2GHz, 2.4GHz, 5.2GHz&5.8GHz, Wi-Fi
• Detection Distance: 0~3km
• Position Accuracy: ≤3m
• Detection Quantity: ≥15 Drones (Simultaneous)
• Number of Drone Trajectories: ≥11 Drones (Simultaneous)
• Dynamic Detection: 0~80km/h (Vehicle speed)
• Continuous Runtime: ≥4h
• Dimensions: 177mm x 89mm x 30mm (±2mm)
• Operating Temperature: -25°C~65°C

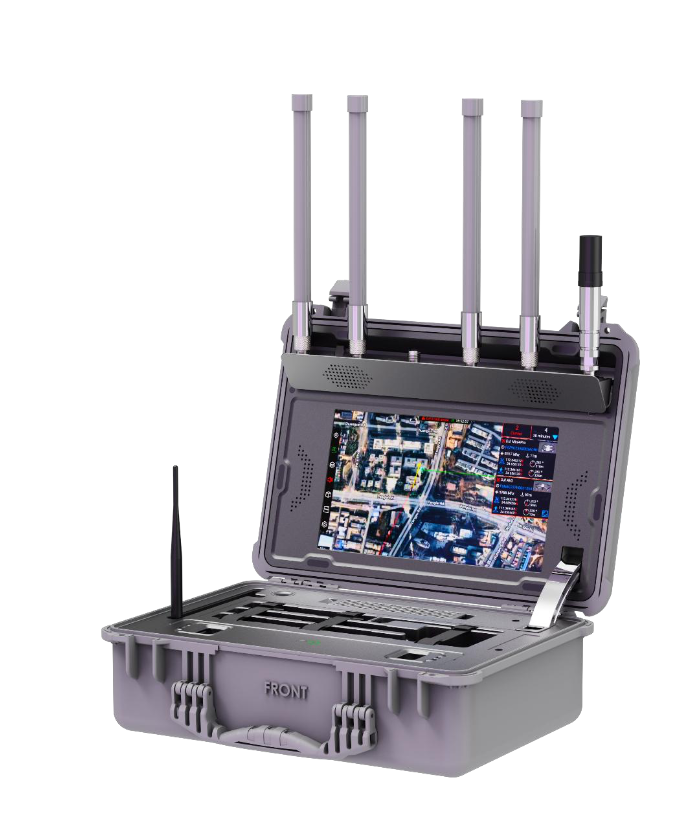

HD5 is a mobile, portable low-altitude detection system featuring an integrated, user-friendly design. Adopting advanced cognitive recognition protocol cracking (CRPC) technology, it delivers core capabilities including passive drone detection, precise identification, image capture, and trajectory tracking. The system employs a high-integration, expandable, and flexible suitcase-style design. It is widely deployed in scenarios such as public security special operations, aviation airports, major event security, and sporting events.

Features: Precise Identification, Strong Usability, Cost-Effective, New Breakthrough Design.

Specs:

• Detection Bands: 100MHz~6GHz
• Main Bands: 433MHz, 900MHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz
• Detection Distance: 0~5km
• Screen: 13.3 inch, 1920*1080 TFT LCD
• Power Supply: Built-in lithium battery or AC 110~240V
• Continuous Runtime: 6~7h
• Dimensions: 470mm x 357mm x 176mm (Closed State)
• Weight: ≤14kg (with lithium battery)
• Operating Temperature: -40°C~65°C
• IP Rating: IP66 (Closed State)

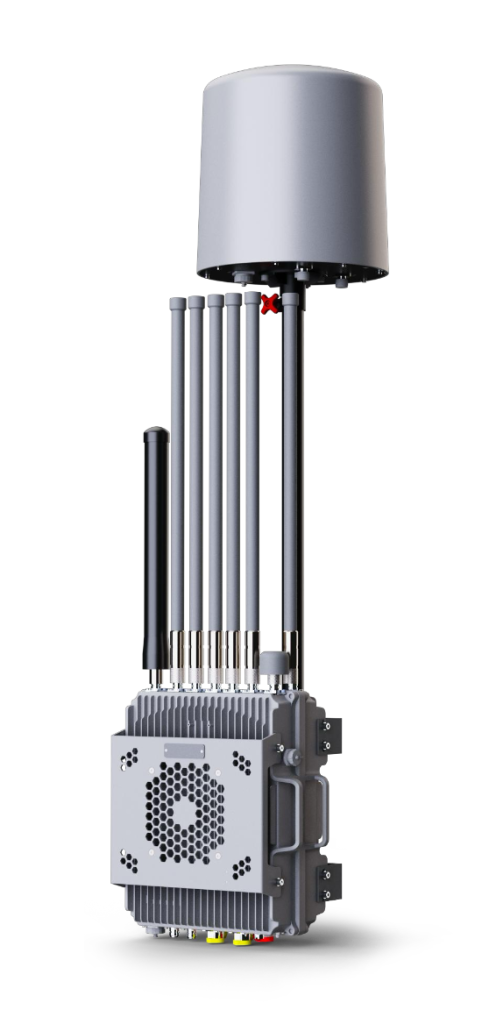

The DF is environmentally friendly. It passively receives only and does not emit any electromagnetic signals. This system is suitable for public safety, correctional facilities, airports, stadiums, water conservancy and hydropower, and other industries.

Features: Passive Detection, Black and White List, Networking Positioning, Precise Identification and Positioning.

Specs:

• Detection Bands: 30MHz~6GHz
• Detection Distance: 0~8km
  Direction Finding Accuracy: (RMS) 3° (hovering), 10° (moving)
  Detection Quantity: >40 Drones (Simultaneous)
  Operating Temperature: -40°C~70°C
  IP Rating: IP66

HJ1 is a portable drone defense product, using a man-machine effective portable design, which can effectively jam the drone's graphic transmission, remote control and navigation signals, and support the joint use with handheld devices. It has the functions of wide-band suppression, non-standard jamming and full-area coverage. It can be widely used in airports and high-speed railways, cultural and tourism scenic spots, important activities, sports events and other scenes.

Features: Omni-directional Jamming, Full Band Jamming, Mobile and Portable, Module Expansion.

Specs:

• Jamming Mode: Radio Jamming Suppression
• Jamming Bands: 800MHz, 900MHz, 1.2GHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz
• Jamming Distance: 0~2km
• Response Time: ≤5s (RMS)
• Continuous Runtime: 0.5h (Jamming)
• Operating Temperature: -25°C~55°C
• Power Supply: Lithium battery that can be replaced

This stationary drone jamming equipment requires work with drone detection systems to achieve integrated detection-defense capabilities. It delivers full-band coverage across non-standard frequency bands, effectively jam control signals and video transmissions from DIY and FPV drones to force controlled landing. Deployed for critical infrastructure protection and high-profile event security.

Features: Non-Standard Signal Jamming, Layered Defense Architecture, Target Alert System, 360° Coverage.

Specs:

• Jamming Mode: Radio Jamming Suppression
• Jamming Bands: 868MHz, 915MHz; Analog Video Transmission: 1.2GHz, 5.8GHz
• Jamming Distance: 0~2km
• Response Time: ≤5s (RMS)
• Operating Temperature: -40°C~65°C
• IP Rating: IP66

J3 is a stationary defense priority product, which is designed with the fusion of multiple jamming technologies, supporting the effective jamming of the drone's graphic transmission, remote control and navigation signals by means of wide-band, narrow-band low-power precise jamming and navigation defense to make it return or land. It features low average transmission power, low environmental impact and high defense reliability. It is widely used in prison, power plant, important activities and other scenarios.

Features: Precise Jamming, Full Range Coverage, Network Coordination, Comprehensive Defense.

Specs:

• Jamming Mode: Radio Jamming Suppression
• Jamming Bands: 400MHz, 800MHz, 900MHz, 1.2GHz, 1.4GHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz
• Jamming Distance: 0~3km
• Response Time: ≤5s (RMS)
• Operating Temperature: -40°C~65°C
• IP Rating: IP66
